Benchmark Rack Mount Couplers and Plates

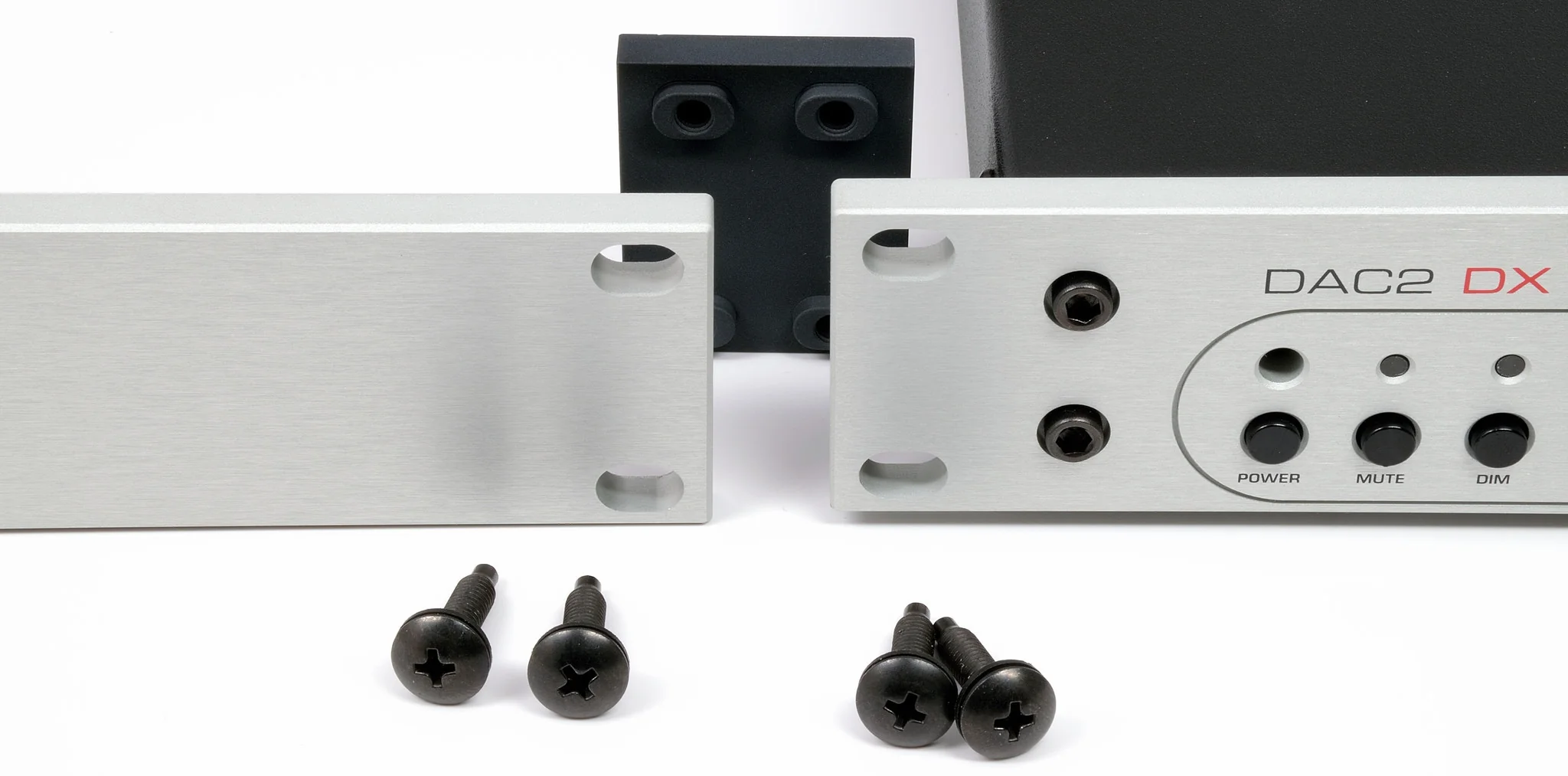

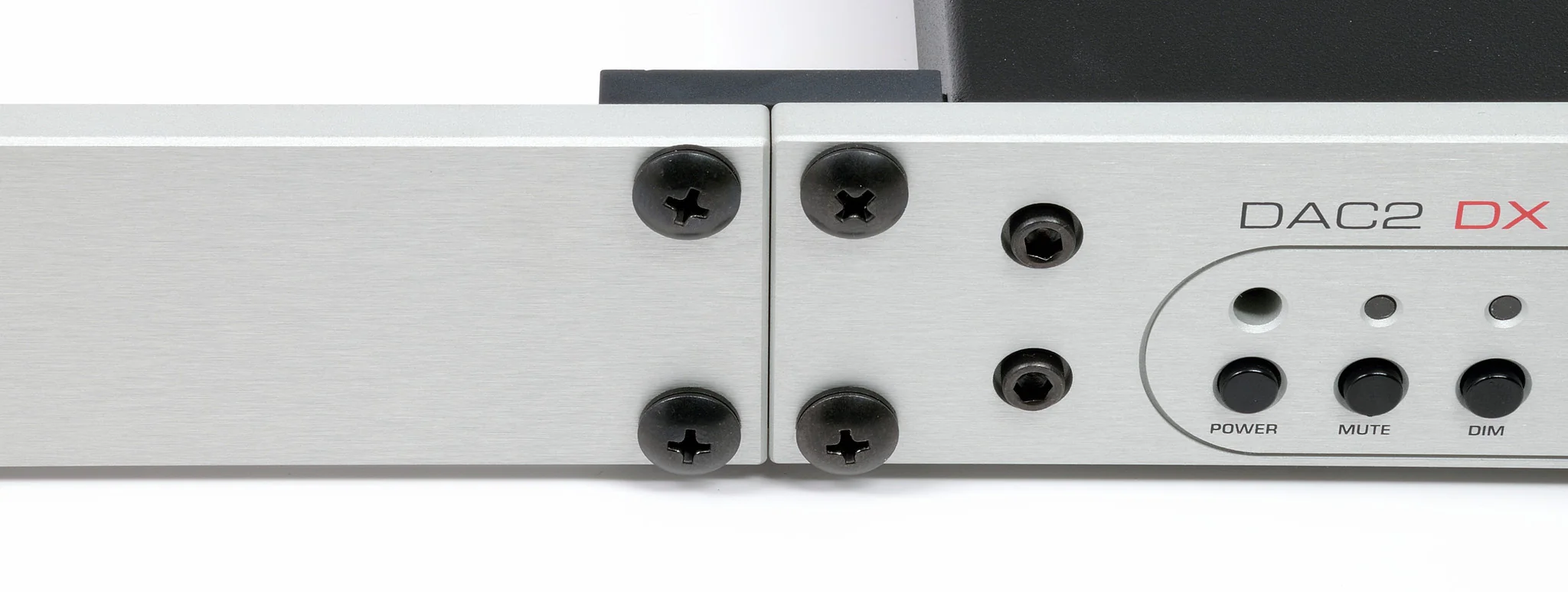

Coupler Block

The coupler block joins two 1/2-wide space 1 RU high products. Both products must be equipped with rack ears. The coupler includes 8 rack-mount screws (10-32 x 3/4). No other hardware is required. The coupler is precision machined from solid aluminum and has a black anodized finish. It provides a rigid connection between two 1/2-wide products to fill a single 1RU space in a standard 19" equipment rack.

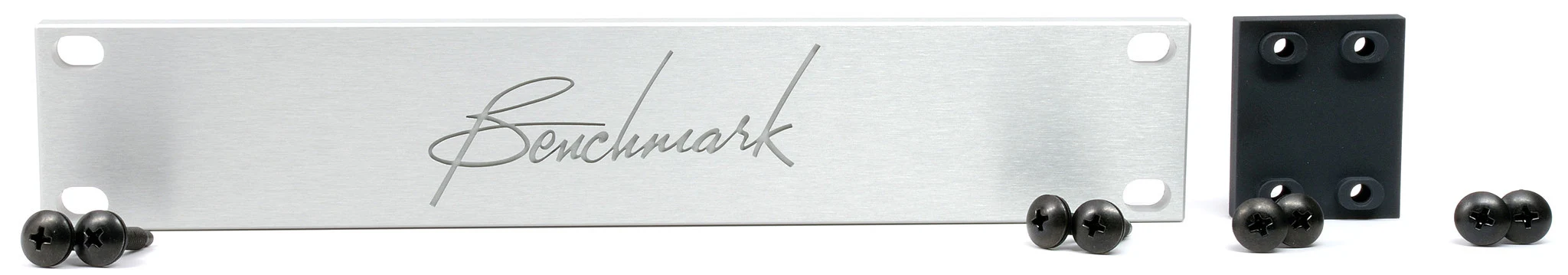

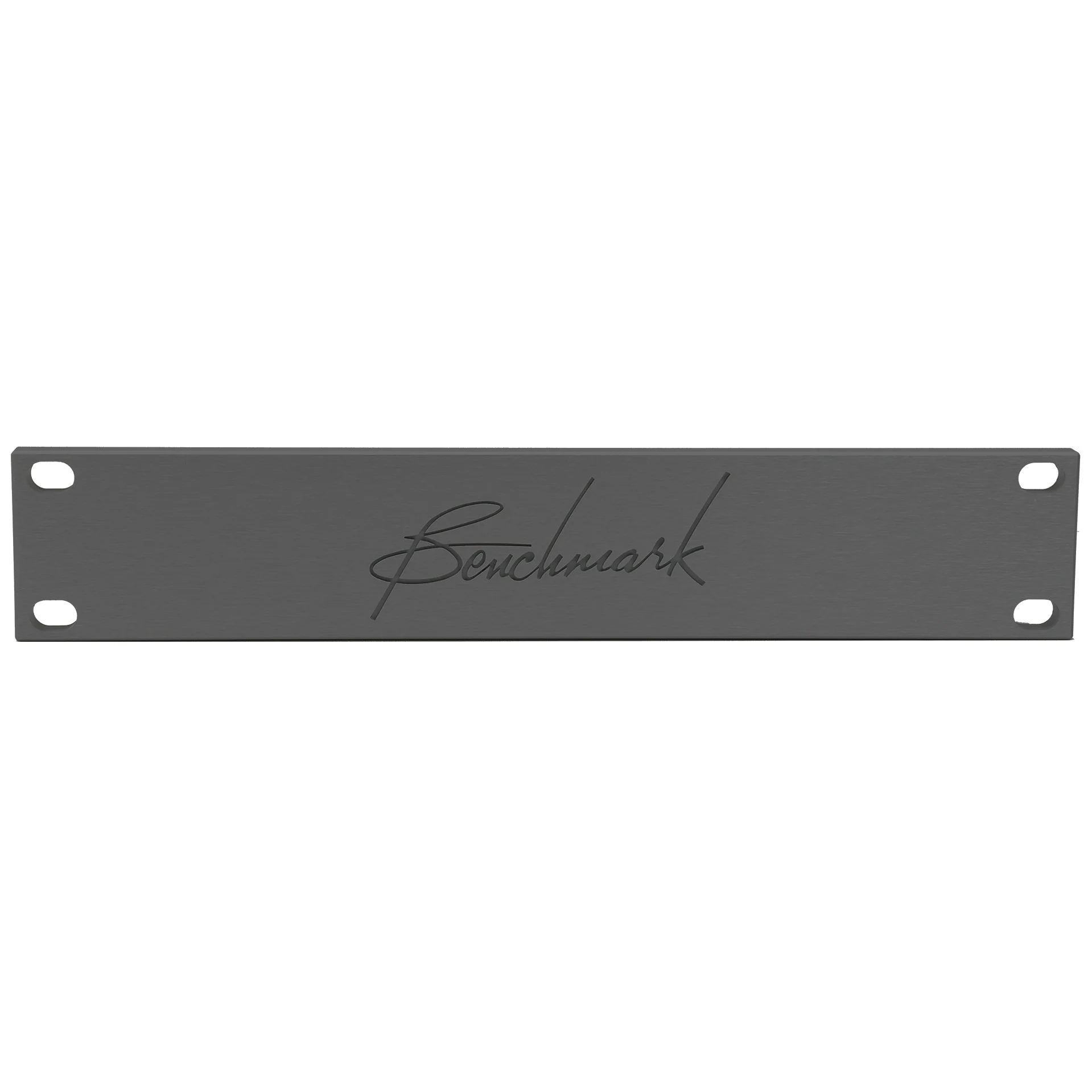

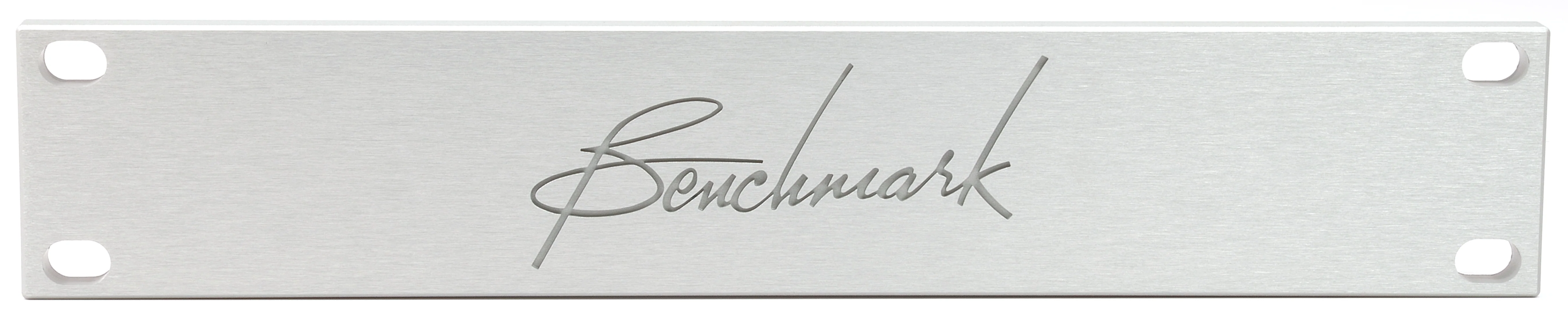

Premium Blank Plate

Order the coupler with an optional Premium Blank Plate if only one unit will be mounted in the rack.

• Machined from 1/4 inch thick aluminum.
• Includes an engraved Benchmark Logo.
• Available in a black or silver-colored anodized finish.

Notes

The Rack Mount Coupler may only be used with 1/2-wide 1-RU products having rack ears. Products must be equipped with rack ears to use this coupler. No tray is required when joining two 1/2-wide rack mount products with the coupler.

Compatible Products

This coupler is compatible with the following 1/2-wide products:

• DAC1 with rack ears
• DAC1 USB with rack ears
• MPA1 with rack ears
• ADC1 with rack ears
• ADC1 USB with rack ears
• DAC2 DX with rack ears
• DAC3 DX with rack ears
• DAC3 B with rack ears

Made in the USA
